mds::img::CVolumeLaplaceFilter0< V, N > Class Template Reference

Laplacian volume filter (first version). More...

#include <mdsLaplacian.h>

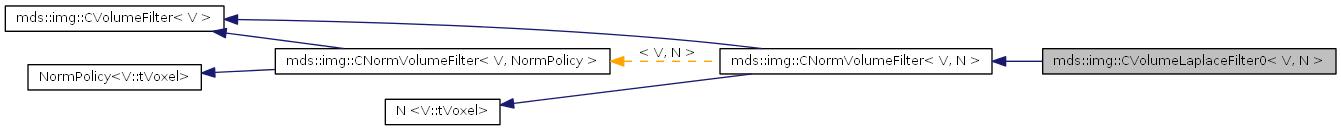

Inheritance diagram for mds::img::CVolumeLaplaceFilter0< V, N >:

List of all members.

Public Types
enum	{ TEMPLATE_PARAMETER_IS_NOT_VOLUME = V::CLASS_VOLUME }
	Check that type V is a volume. More...
typedef CNormVolumeFilter< V, N >	base
	Volume filter base.
typedef base::tResult	tResult
	Filter response type.
typedef base::tVolume	tVolume
	Volume type.
typedef base::tVoxel	tVoxel
	Volume voxel type.
Public Member Functions
	CVolumeLaplaceFilter0 ()
	Default constructor.
tResult	getResponse (const tVolume &SrcVolume, tSize x, tSize y, tSize z)
	Returns filter response at specified volume position.
tSize	getSize () const
	Returns filter standard deviation.
bool	operator() (const tVolume &SrcVolume, tVolume &DstVolume)
	Filtering of input/source volume.
	~CVolumeLaplaceFilter0 ()
	Destructor.
Static Public Attributes
static const int	DENOM = 12
	Number used to divide filter response.

---

Detailed Description

template<class V, template< typename > class N = CDefaultFilterPolicy>
class mds::img::CVolumeLaplaceFilter0< V, N >

Laplacian volume filter (first version).

• Parameter V is a used volume type.
• Kernel definition:
  [ 0 0 0 ]
  [ 0 1 0 ]
  [ 0 0 0 ]
  1 [ 0 1 0 ]

  • [ 1 -6 1 ]
    12 [ 0 1 0 ]
    [ 0 0 0 ]
    [ 0 1 0 ]
    [ 0 0 0 ]


---

Member Typedef Documentation

template<class V , template< typename > class N = CDefaultFilterPolicy>

typedef CNormVolumeFilter<V,N> mds::img::CVolumeLaplaceFilter0< V, N >::base

Volume filter base.

Reimplemented from mds::img::CNormVolumeFilter< V, N >.

template<class V , template< typename > class N = CDefaultFilterPolicy>

typedef base::tResult mds::img::CVolumeLaplaceFilter0< V, N >::tResult

Filter response type.

Reimplemented from mds::img::CNormVolumeFilter< V, N >.

template<class V , template< typename > class N = CDefaultFilterPolicy>

typedef base::tVolume mds::img::CVolumeLaplaceFilter0< V, N >::tVolume

Volume type.

Reimplemented from mds::img::CNormVolumeFilter< V, N >.

template<class V , template< typename > class N = CDefaultFilterPolicy>

typedef base::tVoxel mds::img::CVolumeLaplaceFilter0< V, N >::tVoxel

Volume voxel type.

Reimplemented from mds::img::CNormVolumeFilter< V, N >.

---

Member Enumeration Documentation

template<class V>

anonymous enum [inherited]

Check that type V is a volume.

You will see name of this enum somewhere in compiler error message if the type V is not volume.

Enumerator:

TEMPLATE_PARAMETER_IS_NOT_VOLUME

---

Constructor & Destructor Documentation

template<class V , template< typename > class N = CDefaultFilterPolicy>

mds::img::CVolumeLaplaceFilter0< V, N >::CVolumeLaplaceFilter0

(

)

Default constructor.

template<class V , template< typename > class N = CDefaultFilterPolicy>

mds::img::CVolumeLaplaceFilter0< V, N >::~CVolumeLaplaceFilter0

(

)

Destructor.

---

Member Function Documentation

template<class V , template< typename > class N>

CVolumeLaplaceFilter0< V, N >::tResult CVolumeLaplaceFilter0::getResponse	(	const tVolume &	SrcVolume,
		tSize	x,
		tSize	y,
		tSize	z
	)

Returns filter response at specified volume position.

• Value is not normalized!

template<class V , template< typename > class N = CDefaultFilterPolicy>

tSize mds::img::CVolumeLaplaceFilter0< V, N >::getSize

(

)

const

Returns filter standard deviation.

template<class V , template< typename > class N>

bool CVolumeLaplaceFilter0::operator()	(	const tVolume &	SrcVolume,
		tVolume &	DstVolume
	)		[virtual]

Filtering of input/source volume.

• Returns false on failure

Implements mds::img::CNormVolumeFilter< V, N >.

---

Member Data Documentation

template<class V , template< typename > class N = CDefaultFilterPolicy>

const int mds::img::CVolumeLaplaceFilter0< V, N >::DENOM = 12 [static]

Number used to divide filter response.

---

The documentation for this class was generated from the following files:

• VolumeFilters/mdsLaplacian.h
• VolumeFilters/mdsLaplacian.hxx
