mds::img::CVolumeDiffXFilter< V, N > Class Template Reference

Operator computes image derivatives in x direction. More...

#include <mdsMisc.h>

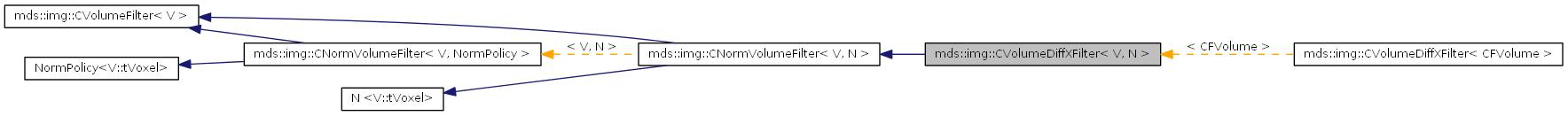

Inheritance diagram for mds::img::CVolumeDiffXFilter< V, N >:

List of all members.

Public Types
enum	{ TEMPLATE_PARAMETER_IS_NOT_VOLUME = V::CLASS_VOLUME }
	Check that type V is a volume. More...
typedef CNormVolumeFilter< V, N >	base
	Volume filter base.
typedef base::tResult	tResult
	Filter response type.
typedef base::tVolume	tVolume
	Volume type.
typedef base::tVoxel	tVoxel
	Volume voxel type.
Public Member Functions
	CVolumeDiffXFilter ()
	Default constructor.
tResult	getResponse (const tVolume &SrcVolume, tSize x, tSize y, tSize z)
	Returns filter response at specified volume position.
tSize	getSize () const
	Returns filter size.
bool	operator() (const tVolume &SrcVolume, tVolume &DstVolume)
	Filtering of input/source volume.
	~CVolumeDiffXFilter ()
	Destructor.
Static Public Attributes
static const int	DENOM = 7
	Number used to divide filter response.

---

Detailed Description

template<class V, template< typename > class N = CDefaultFilterPolicy>
class mds::img::CVolumeDiffXFilter< V, N >

Operator computes image derivatives in x direction.

• Parameter V is a used image type.
• Kernel definition:
  1/7 [ -1 -2 -4 0 4 2 1 ]


---

Member Typedef Documentation

template<class V, template< typename > class N = CDefaultFilterPolicy>

typedef CNormVolumeFilter<V,N> mds::img::CVolumeDiffXFilter< V, N >::base

Volume filter base.

Reimplemented from mds::img::CNormVolumeFilter< V, N >.

template<class V, template< typename > class N = CDefaultFilterPolicy>

typedef base::tResult mds::img::CVolumeDiffXFilter< V, N >::tResult

Filter response type.

Reimplemented from mds::img::CNormVolumeFilter< V, N >.

template<class V, template< typename > class N = CDefaultFilterPolicy>

typedef base::tVolume mds::img::CVolumeDiffXFilter< V, N >::tVolume

Volume type.

Reimplemented from mds::img::CNormVolumeFilter< V, N >.

template<class V, template< typename > class N = CDefaultFilterPolicy>

typedef base::tVoxel mds::img::CVolumeDiffXFilter< V, N >::tVoxel

Volume voxel type.

Reimplemented from mds::img::CNormVolumeFilter< V, N >.

---

Member Enumeration Documentation

template<class V>

anonymous enum [inherited]

Check that type V is a volume.

You will see name of this enum somewhere in compiler error message if the type V is not volume.

Enumerator:

TEMPLATE_PARAMETER_IS_NOT_VOLUME

---

Constructor & Destructor Documentation

template<class V, template< typename > class N = CDefaultFilterPolicy>

mds::img::CVolumeDiffXFilter< V, N >::CVolumeDiffXFilter

(

)

Default constructor.

template<class V, template< typename > class N = CDefaultFilterPolicy>

mds::img::CVolumeDiffXFilter< V, N >::~CVolumeDiffXFilter

(

)

Destructor.

---

Member Function Documentation

template<class V , template< typename > class N>

CVolumeDiffXFilter< V, N >::tResult CVolumeDiffXFilter::getResponse	(	const tVolume &	SrcVolume,
		tSize	x,
		tSize	y,
		tSize	z
	)

Returns filter response at specified volume position.

• Value is not normalized!

template<class V, template< typename > class N = CDefaultFilterPolicy>

tSize mds::img::CVolumeDiffXFilter< V, N >::getSize

(

)

const

Returns filter size.

template<class V , template< typename > class N>

bool CVolumeDiffXFilter::operator()	(	const tVolume &	SrcVolume,
		tVolume &	DstVolume
	)		[virtual]

Filtering of input/source volume.

• Returns false on failure

Implements mds::img::CNormVolumeFilter< V, N >.

---

Member Data Documentation

template<class V, template< typename > class N = CDefaultFilterPolicy>

const int mds::img::CVolumeDiffXFilter< V, N >::DENOM = 7 [static]

Number used to divide filter response.

---

The documentation for this class was generated from the following files:

• mdsMisc.h
• mdsMisc.hxx
