General convolution volume filter. More...

#include <mdsConvolution.h>

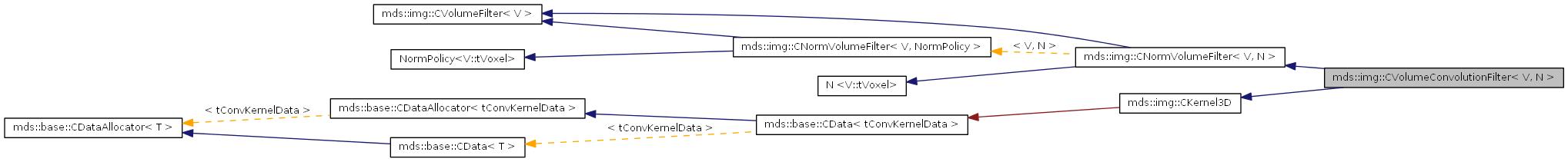

Inheritance diagram for mds::img::CVolumeConvolutionFilter< V, N >:

[legend]

Public Types
enum	{ TEMPLATE_PARAMETER_IS_NOT_VOLUME = V::CLASS_VOLUME }
	Check that type V is a volume. More...
typedef CNormVolumeFilter< V, N >	base
	Volume filter base.
typedef mds::base::CData < tConvKernelData >	data
	Data base.
typedef data::tConstDataPtr	tConstDataPtr
	Pointer to the constant data.
typedef data::tData	tData
	Data type.
typedef data::tDataPtr	tDataPtr
	Pointer to the data.
typedef base::tResult	tResult
	Filter response type.
typedef base::tVolume	tVolume
	Volume type.
typedef base::tVoxel	tVoxel
	Volume voxel type.
Public Member Functions
tData &	at (tSize x, tSize y, tSize z)
	Returns reference to the kernel coefficient [x][y][z].
const tData &	at (tSize x, tSize y, tSize z) const
void	create (tSize Size)
	Creates a new 2D convolution kernel.
	CVolumeConvolutionFilter (tSize Size)
	Constructor that creates a new 2D convolution kernel.
	CVolumeConvolutionFilter (tSize Size, const tData &Value)
	Constructor.
	CVolumeConvolutionFilter (const tConstDataPtr pData, tSize Size)
	Constructor.
	CVolumeConvolutionFilter (const CKernel3D &k)
	Constructor.
tDataPtr	getPtr (tSize x, tSize y, tSize z)
	Returns pointer to a given kernel data [x][y][z].
tConstDataPtr	getPtr (tSize x, tSize y, tSize z) const
tDataPtr	getPtr ()
	Returns pointer to the kernel data.
tConstDataPtr	getPtr () const
tResult	getResponse (const tVolume &SrcVolume, tSize x, tSize y, tSize z)
	Returns filter response at specified volume position.
tSize	getSize () const
	Returns the kernel size.
bool	operator() (const tVolume &SrcVolume, tVolume &DstVolume)
	Filtering of input/source volume.
tData &	operator() (tSize i)
	Returns reference to the subscripted element [i].
const tData &	operator() (tSize i) const
tData &	operator() (tSize x, tSize y, tSize z)
	Returns the subscripted kernel coefficient [x][y][z].
const tData &	operator() (tSize x, tSize y, tSize z) const
void	set (tSize x, tSize y, tSize z, const tData &Value)
	Sets the kernel data.
	~CVolumeConvolutionFilter ()
	Destructor.
Protected Member Functions
void	init (tSize Size)
	Allocates data of a given size.
Protected Attributes
tSize	m_YOffset
	Kernel size.
tSize	m_ZOffset

Detailed Description

template<class V, template< typename > class N = CDefaultFilterPolicy>
class mds::img::CVolumeConvolutionFilter< V, N >

General convolution volume filter.

Parameter V is a used volume type.

Member Typedef Documentation

template<class V , template< typename > class N = CDefaultFilterPolicy>

typedef CNormVolumeFilter<V,N> mds::img::CVolumeConvolutionFilter< V, N >::base

Volume filter base.

Reimplemented from mds::img::CNormVolumeFilter< V, N >.

typedef mds::base::CData<tConvKernelData> mds::img::CKernel3D::data [inherited]

Data base.

typedef data::tConstDataPtr mds::img::CKernel3D::tConstDataPtr [inherited]

Pointer to the constant data.

Reimplemented from mds::base::CData< tConvKernelData >.

typedef data::tData mds::img::CKernel3D::tData [inherited]

Data type.

Reimplemented from mds::base::CData< tConvKernelData >.

typedef data::tDataPtr mds::img::CKernel3D::tDataPtr [inherited]

Pointer to the data.

Reimplemented from mds::base::CData< tConvKernelData >.

template<class V , template< typename > class N = CDefaultFilterPolicy>

typedef base::tResult mds::img::CVolumeConvolutionFilter< V, N >::tResult

Filter response type.

Reimplemented from mds::img::CNormVolumeFilter< V, N >.

template<class V , template< typename > class N = CDefaultFilterPolicy>

typedef base::tVolume mds::img::CVolumeConvolutionFilter< V, N >::tVolume

Volume type.

Reimplemented from mds::img::CNormVolumeFilter< V, N >.

template<class V , template< typename > class N = CDefaultFilterPolicy>

typedef base::tVoxel mds::img::CVolumeConvolutionFilter< V, N >::tVoxel

Volume voxel type.

Reimplemented from mds::img::CNormVolumeFilter< V, N >.

Member Enumeration Documentation

template<class V>

anonymous enum [inherited]

Check that type V is a volume.

You will see name of this enum somewhere in compiler error message if the type V is not volume.

Enumerator:

TEMPLATE_PARAMETER_IS_NOT_VOLUME

Constructor & Destructor Documentation

template<class V , template< typename > class N = CDefaultFilterPolicy>

mds::img::CVolumeConvolutionFilter< V, N >::CVolumeConvolutionFilter ( tSize Size )

Constructor that creates a new 2D convolution kernel.

Parameter 'Size' must be an odd number

template<class V , template< typename > class N = CDefaultFilterPolicy>

mds::img::CVolumeConvolutionFilter< V, N >::CVolumeConvolutionFilter	(	tSize	Size,
		const tData &	Value
	)

Constructor.

template<class V , template< typename > class N = CDefaultFilterPolicy>

mds::img::CVolumeConvolutionFilter< V, N >::CVolumeConvolutionFilter	(	const tConstDataPtr	pData,
		tSize	Size
	)

Constructor.

template<class V , template< typename > class N = CDefaultFilterPolicy>

mds::img::CVolumeConvolutionFilter< V, N >::CVolumeConvolutionFilter ( const CKernel3D & k )

Constructor.

Filter is based on a given convolution kernel

template<class V , template< typename > class N = CDefaultFilterPolicy>

mds::img::CVolumeConvolutionFilter< V, N >::~CVolumeConvolutionFilter ( )

Destructor.

Member Function Documentation

tData& mds::img::CKernel3D::at	(	tSize	x,
		tSize	y,
		tSize	z
	)		`[inherited]`

Returns reference to the kernel coefficient [x][y][z].

Kernel data are viewed as three dimensional.

const tData& mds::img::CKernel3D::at	(	tSize	x,
		tSize	y,
		tSize	z
	)		const `[inherited]`

void mds::img::CKernel3D::create ( tSize Size ) [inherited]

Creates a new 2D convolution kernel.

Reimplemented from mds::base::CData< tConvKernelData >.

tDataPtr mds::img::CKernel3D::getPtr	(	tSize	x,
		tSize	y,
		tSize	z
	)		`[inherited]`

Returns pointer to a given kernel data [x][y][z].

3D version.

tConstDataPtr mds::img::CKernel3D::getPtr	(	tSize	x,
		tSize	y,
		tSize	z
	)		const `[inherited]`

tDataPtr mds::img::CKernel3D::getPtr ( ) [inherited]

Returns pointer to the kernel data.

Reimplemented from mds::base::CData< tConvKernelData >.

tConstDataPtr mds::img::CKernel3D::getPtr ( ) const [inherited]

Reimplemented from mds::base::CData< tConvKernelData >.

template<class V , template< typename > class N = CDefaultFilterPolicy>

tResult mds::img::CVolumeConvolutionFilter< V, N >::getResponse	(	const tVolume &	SrcVolume,
		tSize	x,
		tSize	y,
		tSize	z
	)

Returns filter response at specified volume position.

Value is not normalized!

tSize mds::img::CKernel3D::getSize ( ) const [inherited]

Returns the kernel size.

Reimplemented from mds::base::CData< tConvKernelData >.

void mds::img::CKernel3D::init ( tSize Size ) [protected, inherited]

Allocates data of a given size.

This method is primarily designed for kernel data allocation when the default constructor was used.
Provides no checking of the existing data and its (de,re)allocation.
Avoid of using it!

template<class V , template< typename > class N>

bool CVolumeConvolutionFilter::operator()	(	const tVolume &	SrcVolume,
		tVolume &	DstVolume
	)		`[virtual]`

Filtering of input/source volume.

Point filter responses are written to the destination volume.

Returns false on failure

Implements mds::img::CNormVolumeFilter< V, N >.

tData& mds::base::CData< tConvKernelData >::operator() ( tSize i ) [inherited]

Returns reference to the subscripted element [i].

Reimplemented in mds::img::CKernel1D.

const tData& mds::base::CData< tConvKernelData >::operator() ( tSize i ) const [inherited]

Reimplemented in mds::img::CKernel1D.

tData& mds::img::CKernel3D::operator()	(	tSize	x,
		tSize	y,
		tSize	z
	)		`[inherited]`

Returns the subscripted kernel coefficient [x][y][z].

Kernel data are viewed as three dimensional.

const tData& mds::img::CKernel3D::operator()	(	tSize	x,
		tSize	y,
		tSize	z
	)		const `[inherited]`

void mds::img::CKernel3D::set	(	tSize	x,
		tSize	y,
		tSize	z,
		const tData &	Value
	)		`[inherited]`

Sets the kernel data.

3D version.

Member Data Documentation

tSize mds::img::CKernel3D::m_YOffset [protected, inherited]

Kernel size.

tSize mds::img::CKernel3D::m_ZOffset [protected, inherited]

The documentation for this class was generated from the following files:
