mds::img::CVolumeAnisotropicFilter< V > Class Template Reference

Anisotropic filtering based on the diffusion process. More...

#include <mdsAnisotropic.h>

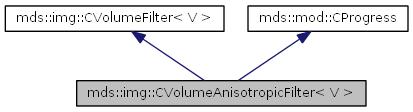

Inheritance diagram for mds::img::CVolumeAnisotropicFilter< V >:

List of all members.

Public Types
enum	{ TEMPLATE_PARAMETER_IS_NOT_VOLUME = V::CLASS_VOLUME }
	Check that type V is a volume. More...
enum	{ BLOCK_SIZE = 32 }
	Size of the processing block (volume window). More...
typedef CVolumeFilter< V >	base
	Volume filter base.
typedef mds::base::CFunctor < bool, int, int >	tProgressFunc
	Progress observer (= functor).
typedef CProgressInitializer	tProgressInitializer
	Helper class which can be used to call methods beginProgress() and endProgress() automatically.
typedef base::tVolume	tVolume
	Volume type.
typedef base::tVoxel	tVoxel
	Volume voxel type.
Public Member Functions
void	beginProgress ()
	This function must be called by the class realizing an operation before it starts.
	CVolumeAnisotropicFilter (double dKappa, tSize NumOfIters=-1)
	Constructor.
void	deregisterProgressFunc ()
	Sets the default empty observer.
void	endProgress ()
	The function must be called by the class realizing an operation every time the operation finishes.
tSize	getNumOfIters () const
	Returns number of iterations of diffusion process.
int	getProgressCount () const
	Returns current value of the internal progress value.
int	getProgressMax () const
	Returns the maximum allowed value of the internal progress counter.
bool	operator() (const tVolume &SrcVolume, tVolume &DstVolume)
	Filtering of input/source volume.
bool	progress (int iIncrement=1)
	Calls the registered observer.
void	registerProgressFunc (const tProgressFunc &Func)
	Sets observer/functor called to inform a calling process about the current state of the running operation.
void	setNumOfIters (tSize NumOfIters)
	Sets the number of iterations of diffusion process.
void	setProgressMax (int iValue)
	Sets the maximal counter value.
	~CVolumeAnisotropicFilter ()
	Destructor.
Static Public Attributes
static const double	DT = 0.166666666666667
static const double	MIN_CHANGE = 0.1
Protected Member Functions
double	getDiffusionStrength (double dGrad)
	Returns value of the diffusion function.
Protected Attributes
double	m_dInvKappa
double	m_dKappa
	Filter parameters.
tSize	m_NumOfIters
	Number of iterations of the diffusion process.

---

Detailed Description

template<class V>
class mds::img::CVolumeAnisotropicFilter< V >

Anisotropic filtering based on the diffusion process.

• Parameter V represents a volume type.

---

Member Typedef Documentation

template<class V >

typedef CVolumeFilter<V> mds::img::CVolumeAnisotropicFilter< V >::base

Volume filter base.

typedef mds::base::CFunctor<bool, int, int> mds::mod::CProgress::tProgressFunc [inherited]

Progress observer (= functor).

• You may return false from the observer if you want to terminate the running operation.
• Parameters describe current and final state of the pending operation (counter and maximal value).
• If the second parameter is equal to -1, termination time cannot be determined, the current state is unknown.

typedef CProgressInitializer mds::mod::CProgress::tProgressInitializer [inherited]

Helper class which can be used to call methods beginProgress() and endProgress() automatically.

Create static object of this type at the begining of a method that realizes an operation.

template<class V >

typedef base::tVolume mds::img::CVolumeAnisotropicFilter< V >::tVolume

Volume type.

Reimplemented from mds::img::CVolumeFilter< V >.

template<class V >

typedef base::tVoxel mds::img::CVolumeAnisotropicFilter< V >::tVoxel

Volume voxel type.

Reimplemented from mds::img::CVolumeFilter< V >.

---

Member Enumeration Documentation

template<class V>

anonymous enum [inherited]

Check that type V is a volume.

You will see name of this enum somewhere in compiler error message if the type V is not volume.

Enumerator:

TEMPLATE_PARAMETER_IS_NOT_VOLUME

template<class V >

anonymous enum

Size of the processing block (volume window).

The input volume is divided into smaller blocks - cubes for the processing.

• This is used to reduce amount of the memory required by the filtering.

Enumerator:

BLOCK_SIZE

---

Constructor & Destructor Documentation

template<class V >

mds::img::CVolumeAnisotropicFilter< V >::CVolumeAnisotropicFilter	(	double	dKappa,
		tSize	NumOfIters = -1
	)

Constructor.

template<class V >

mds::img::CVolumeAnisotropicFilter< V >::~CVolumeAnisotropicFilter

(

)

Destructor.

---

Member Function Documentation

void mds::mod::CProgress::beginProgress

(

)

[inherited]

This function must be called by the class realizing an operation before it starts.

void mds::mod::CProgress::deregisterProgressFunc

(

)

[inherited]

Sets the default empty observer.

void mds::mod::CProgress::endProgress

(

)

[inherited]

The function must be called by the class realizing an operation every time the operation finishes.

• Sets the default observer.

template<class V >

double CVolumeAnisotropicFilter::getDiffusionStrength

(

double

dGrad

)

[protected]

Returns value of the diffusion function.

template<class V >

tSize mds::img::CVolumeAnisotropicFilter< V >::getNumOfIters

(

)

const

Returns number of iterations of diffusion process.

int mds::mod::CProgress::getProgressCount

(

)

const [inherited]

Returns current value of the internal progress value.

int mds::mod::CProgress::getProgressMax

(

)

const [inherited]

Returns the maximum allowed value of the internal progress counter.

template<class V >

bool CVolumeAnisotropicFilter::operator()	(	const tVolume &	SrcVolume,
		tVolume &	DstVolume
	)		[virtual]

Filtering of input/source volume.

Point filter responses are written to the destination volume.

• Returns false on failure.

Implements mds::img::CVolumeFilter< V >.

bool mds::mod::CProgress::progress

(

int

iIncrement = 1

)

[inherited]

Calls the registered observer.

• Returns false if the running operation should be terminated as soon as possible.
• It must be called periodically by the class realizing the operation.

void mds::mod::CProgress::registerProgressFunc

(

const tProgressFunc &

Func

)

[inherited]

Sets observer/functor called to inform a calling process about the current state of the running operation.

• This function should be called before any operation starts.

template<class V >

void mds::img::CVolumeAnisotropicFilter< V >::setNumOfIters

(

tSize

NumOfIters

)

Sets the number of iterations of diffusion process.

void mds::mod::CProgress::setProgressMax

(

int

iValue

)

[inherited]

Sets the maximal counter value.

---

Member Data Documentation

template<class V >

const double CVolumeAnisotropicFilter::DT = 0.166666666666667 [static]

template<class V >

double mds::img::CVolumeAnisotropicFilter< V >::m_dInvKappa [protected]

template<class V >

double mds::img::CVolumeAnisotropicFilter< V >::m_dKappa [protected]

Filter parameters.

template<class V >

tSize mds::img::CVolumeAnisotropicFilter< V >::m_NumOfIters [protected]

Number of iterations of the diffusion process.

template<class V >

const double CVolumeAnisotropicFilter::MIN_CHANGE = 0.1 [static]

---

The documentation for this class was generated from the following files:

• VolumeFilters/mdsAnisotropic.h
• VolumeFilters/mdsAnisotropic.hxx
