mds::img::CLaplaceFilter5< I, N > Class Template Reference

Laplacian image filter (4-th version). More...

#include <mdsLaplacian.h>

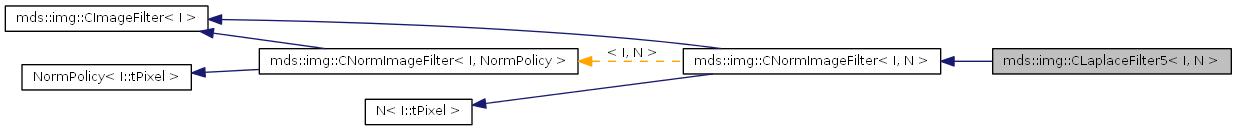

Inheritance diagram for mds::img::CLaplaceFilter5< I, N >:

List of all members.

Public Types
enum	{ TEMPLATE_PARAMETER_IS_NOT_IMAGE = I::CLASS_IMAGE }
	Check that I is an image. More...
typedef CNormImageFilter< I, N >	base
	Image filter base.
typedef base::tImage	tImage
	Image type.
typedef base::tPixel	tPixel
	Image pixel type.
typedef base::tResult	tResult
	Filter response type.
Public Member Functions
	CLaplaceFilter5 ()
	Default constructor.
tResult	getResponse (const tImage &SrcImage, tSize x, tSize y)
	Returns filter response at specified image point.
tSize	getSize () const
	Returns filter standard deviation.
virtual bool	operator() (const tImage &SrcImage, tImage &DstImage)=0
	Filtering of input/source image.
bool	operator() (const tImage &SrcImage, tImage &DstImage)
	Filtering of input/source image.
	~CLaplaceFilter5 ()
	Destructor.
Static Public Attributes
static const int	DENOM = 16
	Number used to divide filter response.
static const CKernel2D::tData	KERNEL []
	Filter kernel.

---

Detailed Description

template<class I, template< typename > class N = CDefaultFilterPolicy>
class mds::img::CLaplaceFilter5< I, N >

Laplacian image filter (4-th version).

• Parameter I is a used image type.
• Policy N is used for filter response normalization.
• Kernel definition:
  [ 0 0 -1 0 0 ]
  1 [ 0 -1 -2 -1 0 ]
  -- [ -1 -2 16 -2 -1 ]
  16 [ 0 -1 -2 -1 0 ]
  [ 0 0 -1 0 0 ]


---

Member Typedef Documentation

template<class I , template< typename > class N = CDefaultFilterPolicy>

typedef CNormImageFilter<I,N> mds::img::CLaplaceFilter5< I, N >::base

Image filter base.

Reimplemented from mds::img::CNormImageFilter< I, N >.

template<class I , template< typename > class N = CDefaultFilterPolicy>

typedef base::tImage mds::img::CLaplaceFilter5< I, N >::tImage

Image type.

Reimplemented from mds::img::CNormImageFilter< I, N >.

template<class I , template< typename > class N = CDefaultFilterPolicy>

typedef base::tPixel mds::img::CLaplaceFilter5< I, N >::tPixel

Image pixel type.

Reimplemented from mds::img::CNormImageFilter< I, N >.

template<class I , template< typename > class N = CDefaultFilterPolicy>

typedef base::tResult mds::img::CLaplaceFilter5< I, N >::tResult

Filter response type.

Reimplemented from mds::img::CNormImageFilter< I, N >.

---

Member Enumeration Documentation

template<class I>

anonymous enum [inherited]

Check that I is an image.

You will see name of this enum somewhere in compiler error message if the type I is not image.

Enumerator:

TEMPLATE_PARAMETER_IS_NOT_IMAGE

---

Constructor & Destructor Documentation

template<class I , template< typename > class N = CDefaultFilterPolicy>

mds::img::CLaplaceFilter5< I, N >::CLaplaceFilter5

(

)

Default constructor.

template<class I , template< typename > class N = CDefaultFilterPolicy>

mds::img::CLaplaceFilter5< I, N >::~CLaplaceFilter5

(

)

Destructor.

---

Member Function Documentation

template<class I , template< typename > class N>

CLaplaceFilter5< I, N >::tResult CLaplaceFilter5::getResponse	(	const tImage &	SrcImage,
		tSize	x,
		tSize	y
	)

Returns filter response at specified image point.

• Value is not normalized!

template<class I , template< typename > class N = CDefaultFilterPolicy>

tSize mds::img::CLaplaceFilter5< I, N >::getSize

(

)

const

Returns filter standard deviation.

virtual bool mds::img::CNormImageFilter< I, N >::operator()	(	const tImage &	SrcImage,
		tImage &	DstImage
	)		[pure virtual, inherited]

Filtering of input/source image.

• Returns false on failure.

Implements mds::img::CImageFilter< I >.

template<class I , template< typename > class N>

bool CLaplaceFilter5::operator()	(	const tImage &	SrcImage,
		tImage &	DstImage
	)

Filtering of input/source image.

Point filter responses are written to the destination image.

• Returns false on failure.

---

Member Data Documentation

template<class I , template< typename > class N = CDefaultFilterPolicy>

const int mds::img::CLaplaceFilter5< I, N >::DENOM = 16 [static]

Number used to divide filter response.

template<class I , template< typename > class N = CDefaultFilterPolicy>

const CKernel2D::tData CLaplaceFilter5::KERNEL [static]

Initial value:

{
    0.0f,  0.0f, -1.0f,  0.0f,  0.0f,
    0.0f, -1.0f, -2.0f, -1.0f,  0.0f,
    -1.0f, -2.0f, 16.0f, -2.0f, -1.0f,
    0.0f, -1.0f, -2.0f, -1.0f,  0.0f,
    0.0f,  0.0f, -1.0f,  0.0f,  0.0f
}

Filter kernel.

---

The documentation for this class was generated from the following files:

• Filters/mdsLaplacian.h
• Filters/mdsLaplacian.hxx
