General convolution filter. More...

#include <mdsConvolution.h>

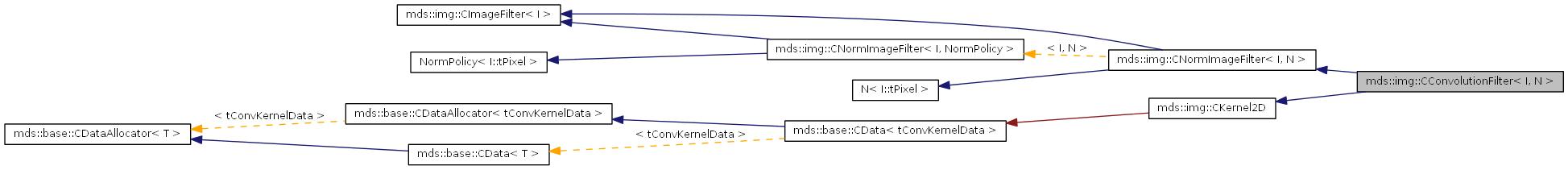

Inheritance diagram for mds::img::CConvolutionFilter< I, N >:

[legend]

Public Types
enum	{ TEMPLATE_PARAMETER_IS_NOT_IMAGE = I::CLASS_IMAGE }
	Check that I is an image. More...
typedef CNormImageFilter< I, N >	base
	Image filter base.
typedef mds::base::CData < tConvKernelData >	data
	Data base.
typedef data::tConstDataPtr	tConstDataPtr
	Pointer to the constant data.
typedef data::tData	tData
	Data type.
typedef data::tDataPtr	tDataPtr
	Pointer to the data.
typedef base::tImage	tImage
	Image type.
typedef base::tPixel	tPixel
	Image pixel type.
typedef base::tResult	tResult
	Filter response type.
Public Member Functions
tData &	at (tSize x, tSize y)
	Returns reference to the kernel coefficient [x][y].
const tData &	at (tSize x, tSize y) const
	CConvolutionFilter (tSize Size)
	Constructor that creates a new 2D convolution kernel.
	CConvolutionFilter (tConstDataPtr pData, tSize Size)
	Constructor.
	CConvolutionFilter (const CKernel2D &k)
	Constructor.
void	create (tSize Size)
	Creates a new 2D convolution kernel.
tDataPtr	getPtr (tSize x, tSize y)
	Returns pointer to a specified kernel coefficient [x][y].
tConstDataPtr	getPtr (tSize x, tSize y) const
tDataPtr	getPtr ()
	Returns pointer to the kernel data.
tConstDataPtr	getPtr () const
tResult	getResponse (const tImage &SrcImage, tSize x, tSize y)
	Returns filter response at specified image point.
tSize	getSize () const
	Returns the kernel size.
bool	operator() (const tImage &SrcImage, tImage &DstImage)
	Filtering of input/source image.
virtual bool	operator() (const tImage &SrcImage, tImage &DstImage)=0
	Filtering of input/source image.
tData &	operator() (tSize i)
	Returns reference to the subscripted element [i].
const tData &	operator() (tSize i) const
tData &	operator() (tSize x, tSize y)
	Returns reference to the kernel coefficient [x][y].
const tData &	operator() (tSize x, tSize y) const
void	set (tSize x, tSize y, const tData &Value)
	Sets the kernel data.
	~CConvolutionFilter ()
	Destructor.
Protected Member Functions
void	init (tSize Size)
	Allocates data of a given size.
Protected Attributes
tSize	m_YOffset
	Kernel size in y-dimension.

Detailed Description

template<class I, template< typename > class N = CDefaultFilterPolicy>
class mds::img::CConvolutionFilter< I, N >

General convolution filter.

Parameter I is a used image type
Policy N is used for filter response normalization.

Member Typedef Documentation

template<class I , template< typename > class N = CDefaultFilterPolicy>

typedef CNormImageFilter<I,N> mds::img::CConvolutionFilter< I, N >::base

Image filter base.

Reimplemented from mds::img::CNormImageFilter< I, N >.

typedef mds::base::CData<tConvKernelData> mds::img::CKernel2D::data [inherited]

Data base.

typedef data::tConstDataPtr mds::img::CKernel2D::tConstDataPtr [inherited]

Pointer to the constant data.

Reimplemented from mds::base::CData< tConvKernelData >.

typedef data::tData mds::img::CKernel2D::tData [inherited]

Data type.

Reimplemented from mds::base::CData< tConvKernelData >.

typedef data::tDataPtr mds::img::CKernel2D::tDataPtr [inherited]

Pointer to the data.

Reimplemented from mds::base::CData< tConvKernelData >.

template<class I , template< typename > class N = CDefaultFilterPolicy>

typedef base::tImage mds::img::CConvolutionFilter< I, N >::tImage

Image type.

Reimplemented from mds::img::CNormImageFilter< I, N >.

template<class I , template< typename > class N = CDefaultFilterPolicy>

typedef base::tPixel mds::img::CConvolutionFilter< I, N >::tPixel

Image pixel type.

Reimplemented from mds::img::CNormImageFilter< I, N >.

template<class I , template< typename > class N = CDefaultFilterPolicy>

typedef base::tResult mds::img::CConvolutionFilter< I, N >::tResult

Filter response type.

Reimplemented from mds::img::CNormImageFilter< I, N >.

Member Enumeration Documentation

template<class I>

anonymous enum [inherited]

Check that I is an image.

You will see name of this enum somewhere in compiler error message if the type I is not image.

Enumerator:

TEMPLATE_PARAMETER_IS_NOT_IMAGE

Constructor & Destructor Documentation

template<class I , template< typename > class N = CDefaultFilterPolicy>

mds::img::CConvolutionFilter< I, N >::CConvolutionFilter ( tSize Size )

Constructor that creates a new 2D convolution kernel.

Parameter 'Size' must be an odd number

template<class I , template< typename > class N = CDefaultFilterPolicy>

mds::img::CConvolutionFilter< I, N >::CConvolutionFilter	(	tConstDataPtr	pData,
		tSize	Size
	)

Constructor.

template<class I , template< typename > class N = CDefaultFilterPolicy>

mds::img::CConvolutionFilter< I, N >::CConvolutionFilter ( const CKernel2D & k )

Constructor.

Filter is based on a given convolution kernel

template<class I , template< typename > class N = CDefaultFilterPolicy>

mds::img::CConvolutionFilter< I, N >::~CConvolutionFilter ( )

Destructor.

Member Function Documentation

tData& mds::img::CKernel2D::at	(	tSize	x,
		tSize	y
	)		`[inherited]`

Returns reference to the kernel coefficient [x][y].

Kernel data viewed as two dimensional array.

const tData& mds::img::CKernel2D::at	(	tSize	x,
		tSize	y
	)		const `[inherited]`

void mds::img::CKernel2D::create ( tSize Size ) [inherited]

Creates a new 2D convolution kernel.

Reimplemented from mds::base::CData< tConvKernelData >.

tDataPtr mds::img::CKernel2D::getPtr	(	tSize	x,
		tSize	y
	)		`[inherited]`

Returns pointer to a specified kernel coefficient [x][y].

tConstDataPtr mds::img::CKernel2D::getPtr	(	tSize	x,
		tSize	y
	)		const `[inherited]`

tDataPtr mds::img::CKernel2D::getPtr ( ) [inherited]

Returns pointer to the kernel data.

Reimplemented from mds::base::CData< tConvKernelData >.

tConstDataPtr mds::img::CKernel2D::getPtr ( ) const [inherited]

Reimplemented from mds::base::CData< tConvKernelData >.

template<class I , template< typename > class N = CDefaultFilterPolicy>

tResult mds::img::CConvolutionFilter< I, N >::getResponse	(	const tImage &	SrcImage,
		tSize	x,
		tSize	y
	)

Returns filter response at specified image point.

Value is not normalized!

tSize mds::img::CKernel2D::getSize ( ) const [inherited]

Returns the kernel size.

Reimplemented from mds::base::CData< tConvKernelData >.

Reimplemented in mds::img::CGaussFilter< I >, mds::img::CGaussFilter< tImage >, and mds::img::CGaussFilter< CFImage >.

void mds::img::CKernel2D::init ( tSize Size ) [protected, inherited]

Allocates data of a given size.

This method is primarily designed for kernel data allocation when the default constructor was used.
Provides no checking of the existing data and its (de,re)allocation.
Avoid of using it!

template<class I , template< typename > class N>

bool CConvolutionFilter::operator()	(	const tImage &	SrcImage,
		tImage &	DstImage
	)

Filtering of input/source image.

Point filter responses are written to the destination image.

Returns false on failure.

virtual bool mds::img::CNormImageFilter< I, N >::operator()	(	const tImage &	SrcImage,
		tImage &	DstImage
	)		`[pure virtual, inherited]`

Filtering of input/source image.

Returns false on failure.

Implements mds::img::CImageFilter< I >.

tData& mds::base::CData< tConvKernelData >::operator() ( tSize i ) [inherited]

Returns reference to the subscripted element [i].

Reimplemented in mds::img::CKernel1D.

const tData& mds::base::CData< tConvKernelData >::operator() ( tSize i ) const [inherited]

Reimplemented in mds::img::CKernel1D.

tData& mds::img::CKernel2D::operator()	(	tSize	x,
		tSize	y
	)		`[inherited]`

Returns reference to the kernel coefficient [x][y].

Kernel data are viewed as two dimensional.

const tData& mds::img::CKernel2D::operator()	(	tSize	x,
		tSize	y
	)		const `[inherited]`

void mds::img::CKernel2D::set	(	tSize	x,
		tSize	y,
		const tData &	Value
	)		`[inherited]`

Sets the kernel data.

Member Data Documentation

tSize mds::img::CKernel2D::m_YOffset [protected, inherited]

Kernel size in y-dimension.

The documentation for this class was generated from the following files:
